Aeromotive Stage 3 Carb Fuel System Kit - 4000+hp

Aeromotive Stage 3 Carb Fuel System Kit - 4000+hp

STG3-CARB
Price: $3,599.95
Sale Price: $2,985.96

Aeromotive Stage 3 Carb Fuel System Kit - 4000+hp

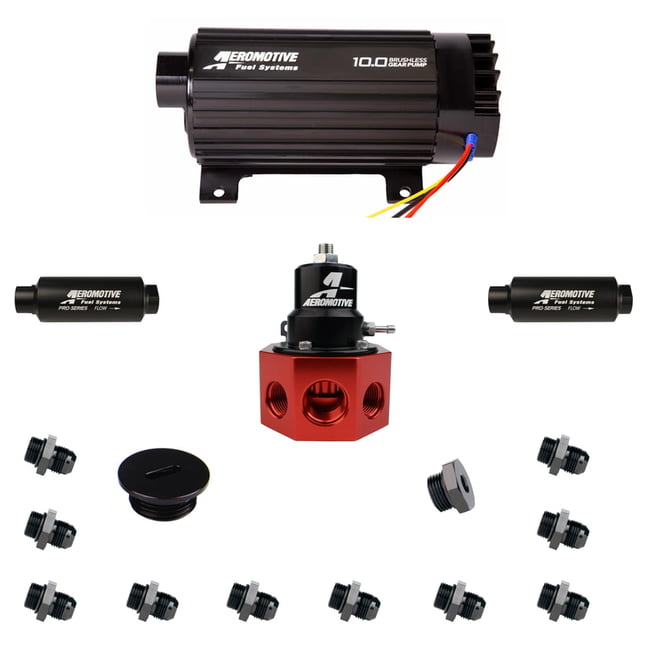

Our Aeromotive Stage 3 Kit is designed for blow-through carbs that will not be exceeding 4,000+hp on pump gas, 3,500hp on E-85 and 1,800hp on methanol.  The system features a Aeromotive 10.0 GPM Brushless in-line fuel pump with true variable speed control, and a return style regulator with 4 outlet ports and 1 return port.  The kit includes all the necessary fittings, plug and filters.

Aeromotive 10.0 GPM Pump Specs

  • E85 Compatible, reduce max FWHP by 30%
  • Lighter than the traditional external mount pumps.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.
