Aeromotive Stage 2 EFI Fuel System Kit - 3,200hp

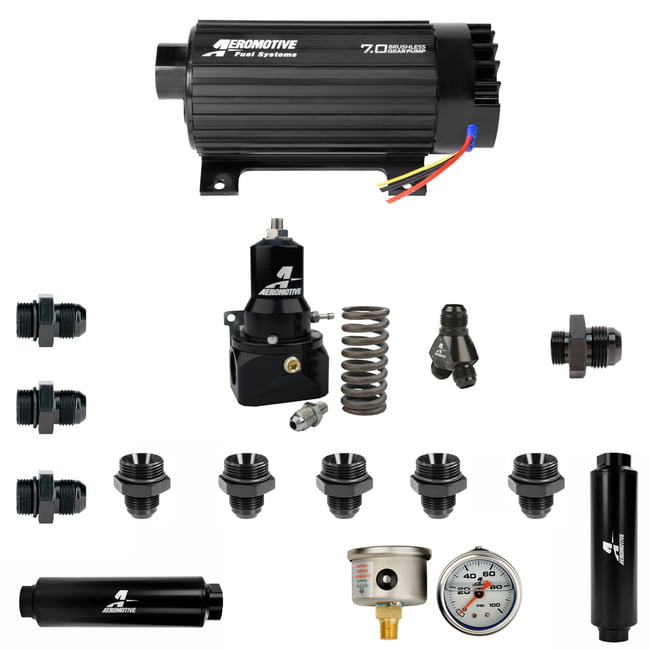

Our Aeromotive Stage 2 Kit is designed for EFI setups that will not be exceeding 3,200hp on pump gas and 2,200 on E-85.  The system features a Aeromotive 7.0 GPM Brushless in-line fuel pump with true variable speed control, and a 2-Port Regulator with dual ORB-10 inlet/outlet ports and one return ORB-10 port.  The kit includes all the necessary fittings, plug and filters.

Aeromotive 7.0 Pump Specs

• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional external mount pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
